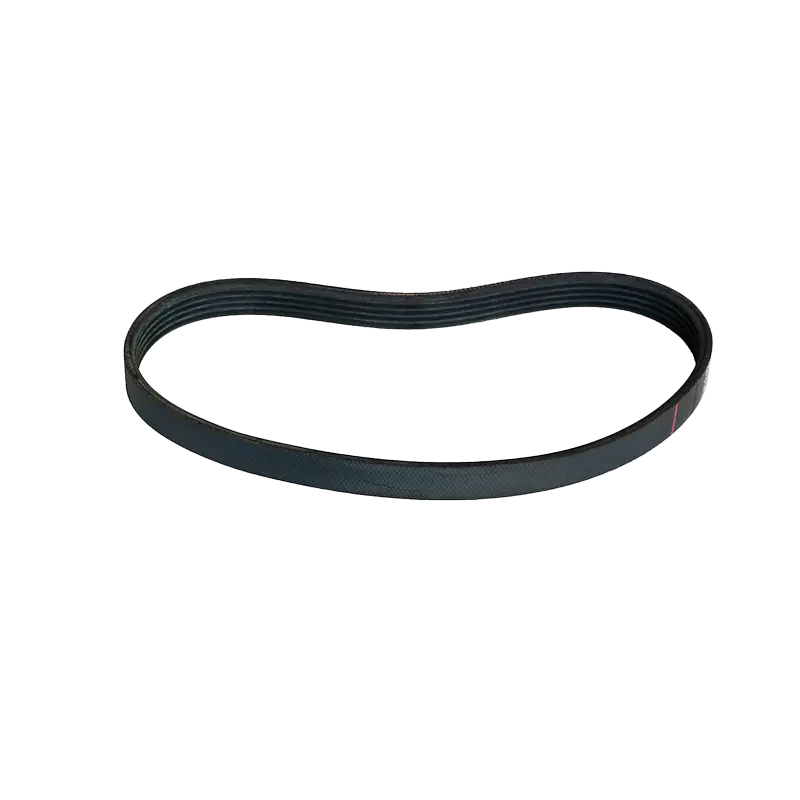

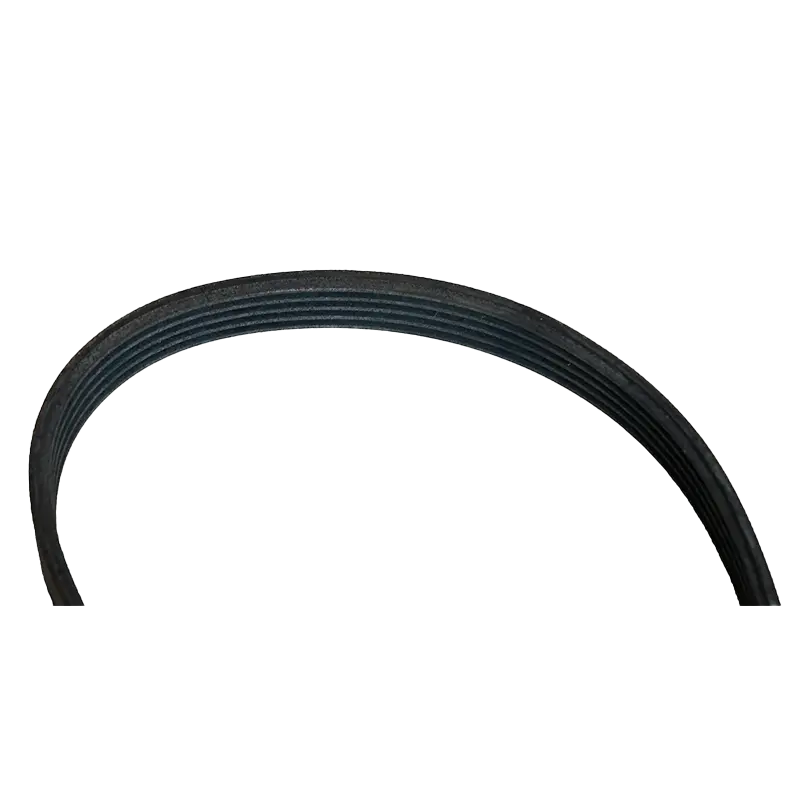

Rubber multi-ribbed belt | Multi-ribbed high-efficiency transmission, low noise and energy saving | High-precision industrial-grade solutions
description1
description2

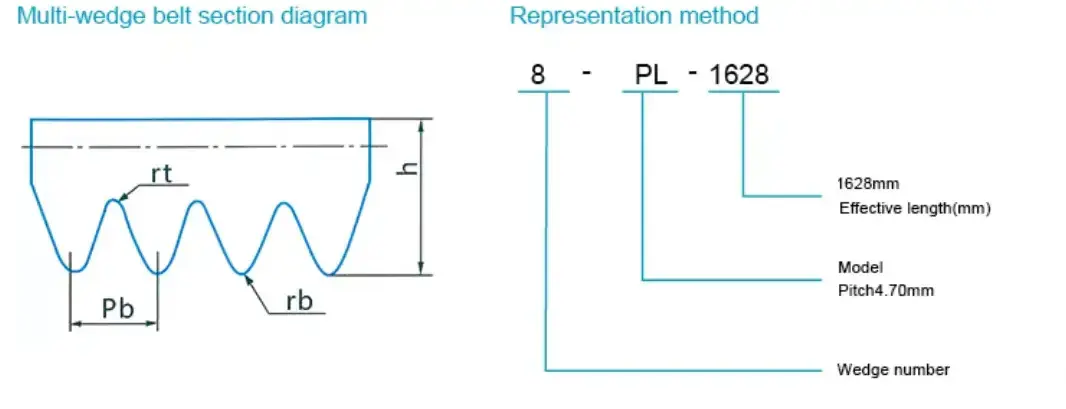

Specification
|
Type |
PH |
PJ |
PK |
PL |
PM |
|
Wedge distance |
1.6 |
2.34 |
3.56 |
4.7 |
9.4 |
|
Wedge top arc radius rb, min value |
0.3 |
0.4 |
0.5 |
0.4 |
0.75 |
|
Wedge base arc radius rt, max value |
0.15 |
0.2 |
0.25 |
0.4 |
0.75 |
|
Belt height h, approximate value |
3 |
4 |
6 |
10 |
17 |
Product advantages
Multi-wedge structure: super strong transmission
Multi-groove design: 6-10 precision V-shaped wedge teeth, contact area increased by 40%, transmission power increased by 30%, completely eliminating slippage.
Low-noise operation: lateral rigidity enhancement layer with shock-absorbing rubber formula, suitable for quiet workshop environment.
Industrial solutions
|
Industry |
Typical application scenarios |
Core Values |
|
Automobile manufacturing |
Engine water pump/air conditioning compressor/generator drive |
Multi-wedge synchronous drive, saving space and reducing failure rate |
|
Household appliances |
Washing machine drum/air conditioning fan/vacuum cleaner motor |
Silent and energy-saving, extending equipment life |
|
Industrial equipment |
CNC machine tool spindle/fan drive/packaging machine power |
High torque load, suitable for continuous high-intensity operation |
|
New energy field |
Electric vehicle drive system/charging pile cooling fan |
High temperature resistance, chemical corrosion resistance, meeting the requirements of harsh working conditions |
Why choose us?
Full process inspection: raw material incoming inspection → production process testing → finished product outgoing inspection
International certification: ISO 9001 quality management system
2. Flexible customization service
Size customization: length and width can be customized freely
3. Global service network
Fast delivery: China production base | 1000+ spot direct delivery
Technical support: free transmission system technical guidance | 7 to 15 days mass production delivery
If you are interested in our products, please feel free to contact us, we will be happy to serve you.
